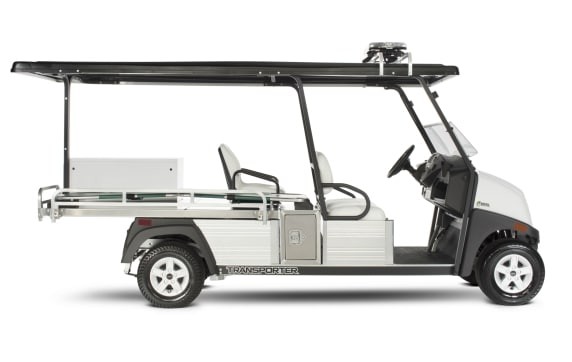

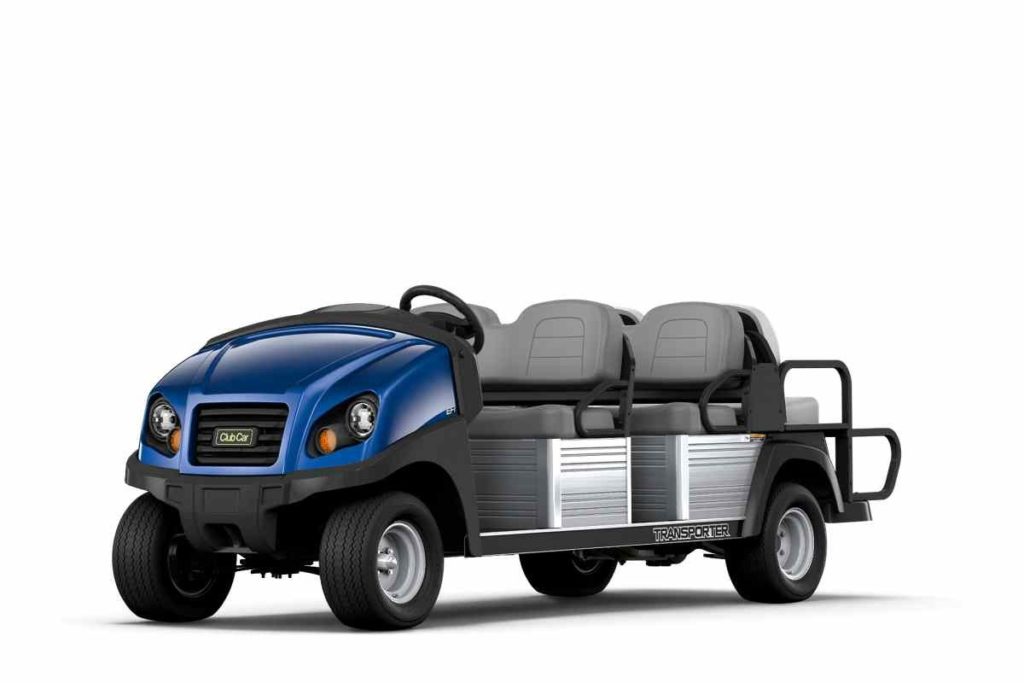

Golf Cars of Arizona TRANSPORTER
Equipped with our exclusive, aircraft-grade, rustproof aluminum chassis, body, and bed.
Driven by a powerful 14-hp-rated (10 kW) single-cylinder engine or a quiet zero-emissions electric powertrain, the affordable and efficient Transporter carries four to six team members. It’s great for campuses, resorts, airports and many other users.
Electric models feature 48-volt battery packs and powerful 500-amp controllers. Smart onboard chargers with reel retractor help prevent user errors and allow for opportunity charging around your site.
Four-passenger models come with cargo beds, and all Transporter™ passenger vehicles feature rustproof aircraft-grade aluminum frames that resist water, fertilizers, chemicals and salt and extend the vehicles’ lifespans.
FIT-TO-TASK EQUIPMENT
We’ve listened to your feedback, and now ordering the right equipment and accessories has never been easier. With our Fit-To-Task series, you’ll get the right vehicle outfitted for your specific needs and with faster turnaround time.
| ELECTRIC | GASOLINE | ||
|---|---|---|---|
| MOTOR | 48V DC | Engine | KOHLER |
| Horsepower | 3.7 hp (2.7 kW) rated; Peak 20 hp (14.9 kW) | Horsepower | 14.0 hp (10.3 kW) rated @ 3600 RPM per SAE J1940 |
| Batteries | (8) 6V flooded lead acid | Batteries | 12V 500 CCA 105min Reserve |
| Charger | DeltaQ QuiQ (1 kW high fequency) | Charger | N/A |
| Speed Range | 15-17 mph | Speed Range | 15-17 mph |
| ELECTIC | GOSLINE | ||
|---|---|---|---|
| Steering | Self-adjusting rack & pinion | Steering | Self-adjusting rack & pinion |
| Front Suspension | Independent leaf springs w/dual hydraulic shocks | Front Suspension | Independent leaf springs w/dual hydraulic shocks |
| ELECTIC | GOSLINE | ||
|---|---|---|---|
| Brakes | 4-wheel mechanical drum | Brakes | 4-wheel mechanical drum |
| Park Brake | Foot operated, multi-lock | Park Brake | Foot operated, multi-lock |
| ELECTIC | GOSLINE | ||
|---|---|---|---|
| Body and Finish | ArmorFlex with automotive paint/clearcoat | Body and Finish | ArmorFlex with automotive paint/clearcoat 20 x 10-10, 6-ply |
| Tires | 20 x 10-10, 6-ply | ||
| LxWxH (Cargo Box) | 36.2 x 47.5 x 10.5 in (91.9 x 120 x 26.6 cm) | LxWxH (Cargo Box) | 36.2 x 47.5 x 10.5 in (91.9 x 120 x 26.6 cm) |
| Wheelbase | 99.1 in (251.7 cm) | Wheelbase | 99.1 in (251.7 cm) |
| Ground Clearance | 5.6 in (14.2 cm) | Ground Clearance | 5.2 in (13.2 cm) |
