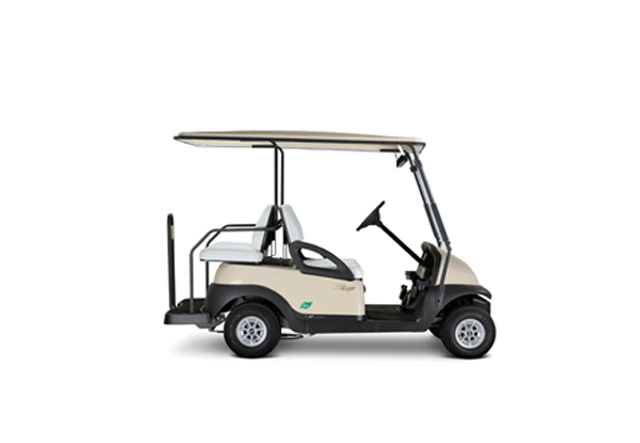

Golf Cars of Arizona VILLAGER 4
The most economical people mover – without compromosing comfort, style, or efficiency.
The Villager 4 adds comfort to sporty handling, boasting the tightest turn radius in the industry. This makes it ideal for resorts, college and corporate campuses, and other sites.
Electric models feature 48-volt battery packs, 250-amp controllers and smart onboard chargers with reel retractors that help prevent common user errors and let you charge at an 110-volt outlet.
Gasoline models are driven by 14 hp-rated (10 kW) single-cylinder overhead cam engines. Aluminum frames resist rust, and independent front suspension systems with self-adjusting rack-and-pinion steering delivers a smooth ride.
| ELECTIC | GOSLINE | ||
|---|---|---|---|
| Engine | 48V DC | Engine | Subaru, 4-cycle, |
| Horsepower | 3.3 hp (2.4 kW) rated; Peak 13 hp (9.6 kW) | Horsepower | 14.0 hp (10.3 kW) rated @ 3600 RPM per SAE J1940 |
| Batteries | (6) 8-volt flooded lead acid | Batteries | 12V 500 CCA 105min Reserve |
| Charger | E.R.I.C.(650 W high frequency) | Charger | N/A |
| Speed Range | 5-15 mph | Speed Range | 12-15 mph |
| ELECTIC | GOSLINE | ||
|---|---|---|---|
| Steering | SportDrive™ – Self-compensating double reduction helical rack & pinion | Steering | SportDrive™ – Self-compensating double reduction helical rack & pinion |
| Front Suspension | Independent leaf springs w/dual hydraulic shocks | Front Suspension | Independent leaf springs w/dual hydraulic shocks |
| ELECTIC | GOSLINE | ||
|---|---|---|---|
| Brakes | rear wheel mechanical drum | Brakes | rear wheel mechanical drum |
| Park Brake | Foot operated, multi-lock | Park Brake | Foot operated, multi-lock |
| ELECTIC | GOSLINE | ||
|---|---|---|---|
| Body and Finish | Formion®, molded-in color | Body and Finish | Formion®, molded-in color |
| Tires | 18 x 8.50-8, 4-ply rated, premium tread | Tires | 18 x 8.50-8, 4-ply rated, premium tread |
| LxWxH (Cargo Box) | N/A | LxWxH (Cargo Box) | N/A |
| Wheelbase | 65.5 in (166.4 cm) | Wheelbase | 65.5 in (166.4 cm) |
| Ground Clearance | 4.5 in (11.4 cm) | Ground Clearance | 4.5 in (11.4 cm) |
