Golf Cars of Arizona Carryall 700

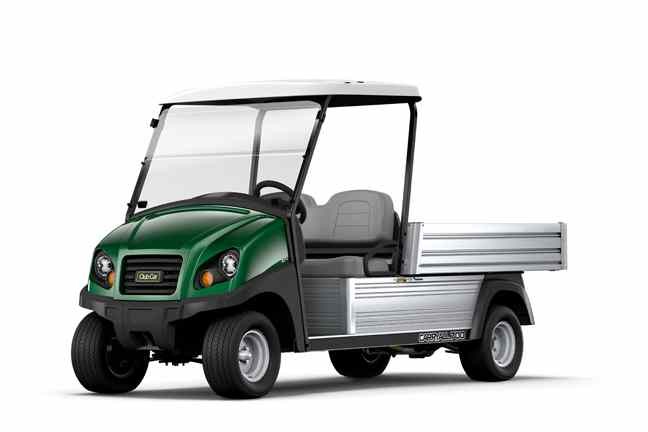

CARRYALL 700
One of our most popular models, boasting high hauling capacity with a legendary, rugged Carryall build .
FOR THE LONG HAUL
The Carryall 700 combines a bed that’s nearly six feet (179 cm) long with a ¾ ton (680 kg) total vehicle capacity, making it ideal for hauling long, bulky loads.
Club Car’s renowned independent suspension and rack-and-pinion steering deliver a smooth ride, even when fully loaded. It’s available in both gasoline and electric models.

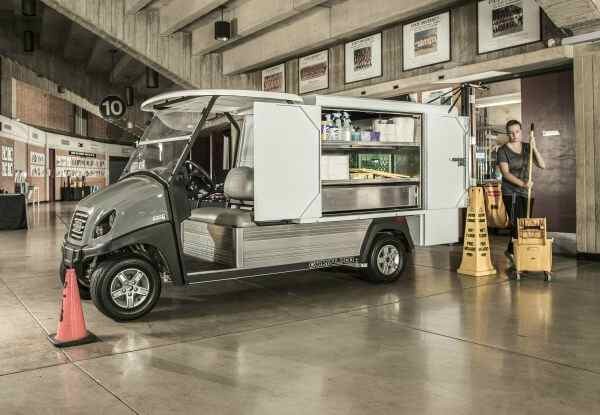

The Carryall 700 can be equipped with a cab, custom van box and other accessories to make it an economical alternative to a full-sized van or pickup truck. Schools and municipalities use it as a medical services vehicle; it’s ideal for carrying two trainers and their gear into tight spaces.
FIT-TO-TASK EQUIPMENT
We’ve listened to your feedback, and now ordering the right equipment and accessories has never been easier. With our Fit-to-Task series, you’ll get the right vehicle outfitted for your specific needs and with faster turnaround time.
| ELECTIC | GOSLINE | ||
|---|---|---|---|
| Engine | 48-volt DC | Engine | 404 cc Subaru, 4-cycle, Overhead Cam with Electronic Fuel Injection |
| Horsepower | 3.7 hp (2.7 kW) rated; Peak 20 hp (14.9 kW) | Horsepower | 14.0 hp (10.3 kW) rated @ 3600 RPM per SAE J1940 |
| Batteries | (8) 6-volt Flooded Lead Acid | Batteries | One 12-volt 500 CCA; 105 min Reserve |
| Charger | DeltaQ QuiQ (1 kW High Frequency) | Charger | N/A |
| Speed Range | 5-17 mph (8-27 kph) | Speed Range | 15-17 mph (24-27 kph)
|
| Fuel Tank | N/A | Fuel Tank | 5.5 gal (20.8 L) |
| ELECTIC | GOSLINE | ||
|---|---|---|---|
| Steering | Self-adjusting Rack and Pinion | Steering | Self-adjusting Rack and Pinion |
| Front Suspension | Independent leaf springs w/dual hydraulic shocks | Front Suspension | Independent leaf springs w/dual hydraulic shocks |
| ELECTIC | GASOLINE | ||
|---|---|---|---|
| Brakes | 4-wheel Mechanical Drum | Brakes | 4-wheel Mechanical Drum |
| Park Brake | Foot Operated, Multi-lock | Park Brake | Foot Operated, Multi-lock |
| ELECTIC | GASOLINE | ||
|---|---|---|---|
| Body and Finish | ArmorFlex with automotive paint/clearcoat | Body and Finish | ArmorFlex with automotive paint/clearcoat |
| Tires | 20 x 10-10, 6-ply | Tires | 20 x 10-10, 6-ply |
| Bed LxWxH | 67.6 x 49.8 x 10.5 in (171.7 x 126.5 x 26.7cm) | Bed LxWxH | 67.6 x 49.8 x 10.5 in (171.7 x 126.5 x 26.7cm) |
| Wheelbase | 99.1 in (251.7 cm) | Wheelbase | 99.1 in (251.7 cm) |
| Ground Clearance | 5.6 in (14.2 cm) | Ground Clearance | 5.2 in (13.2 cm) |
| Tread | 36.6 in (92.9 cm)/39.5 in (100.3 cm) | Tread (Front/Rear) | 36.6 in (92.9 cm)/39.5 in (100.3 cm) |
| Vehicle LxWxH | 137.5 x 50.3 x 47.1 in(349.3 x 119.6 x 127.7 cm) | Vehicle LxWxH | 137.5 x 50.3 x 47.1 in(349.3 x 119.6 x 127.7 cm) |
| Frame Type | AlumiCore™ — Ladder-style aluminum box beam | Frame Type | AlumiCore™ — Ladder-style aluminum box beam |
