Golf Cars of Arizona Carryall 1500 2 Wheel Drive

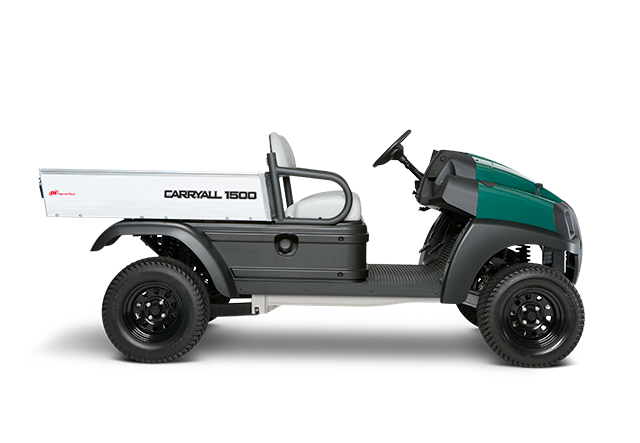

CARRYALL 1500 TWO-WHEEL DRIVE
Heavy-duty hauling with a gentle touch.
GET MORE FOR LESS
This gasoline utility vehicle delivers the power and ground clearance of a four-wheel drive, but carries even more payload. A true work utility vehicle, it tows up to 1,900 lbs. (862 kg) and features a 20.1 hp-rated (15 kw) Kawasaki gasoline engine and four-wheel hydraulic disc brakes.
The Carryall 1500 rides on special tires designed to minimize impact on turf and other improved surfaces. The rear-wheel drive train, coil-over shocks and a top speed of 19 mph help you tread lightly over those areas you want to protect.
| GASOLINE | |||
|---|---|---|---|
| Engine | Kawasaki 4-cycle, industrial grade | ||
| Horsepower | 20.1 hp (15.0 kW) rated @ 3400 RPM per SAE J1349 | ||
| Batteries | One 12-volt 500 CCA; 105 min Reserve | ||
| Fuel Capacity | 6.5 gal (24.6 L) | ||
| Speed | 19 mph (30.5 kph) | ||
| Drivetrain | IntelliTrack 2WD System | ||
| GASOLINE | |||
|---|---|---|---|
| Steering | Rack and pinion with Tilt Steering | ||
| Front Suspension | Independent double A-arms with coil-over shocks | ||
| Front Suspension | Independent double A-arms with coil-over shocks | ||
| Rear Suspension | Semi-independent, 4-link solid axle | ||
| Turning Radius | 13 ft (3.8 m) | ||
| GASOLINE | |||
|---|---|---|---|
| Front Brakes | Twin piston, hydraulic disc | ||
| Rear Brakes | Single piston, hydraulic disc | ||
| Park Brake | Foot-pedal activated, mechanical disc | ||
| GASOLINE | |||
|---|---|---|---|
| Body Material | GE Geloy high-impact, scratch-resistant, injection- molded color | ||
| Tires | All-terrain, 25 x 10.5 – 12, 4-ply | ||
