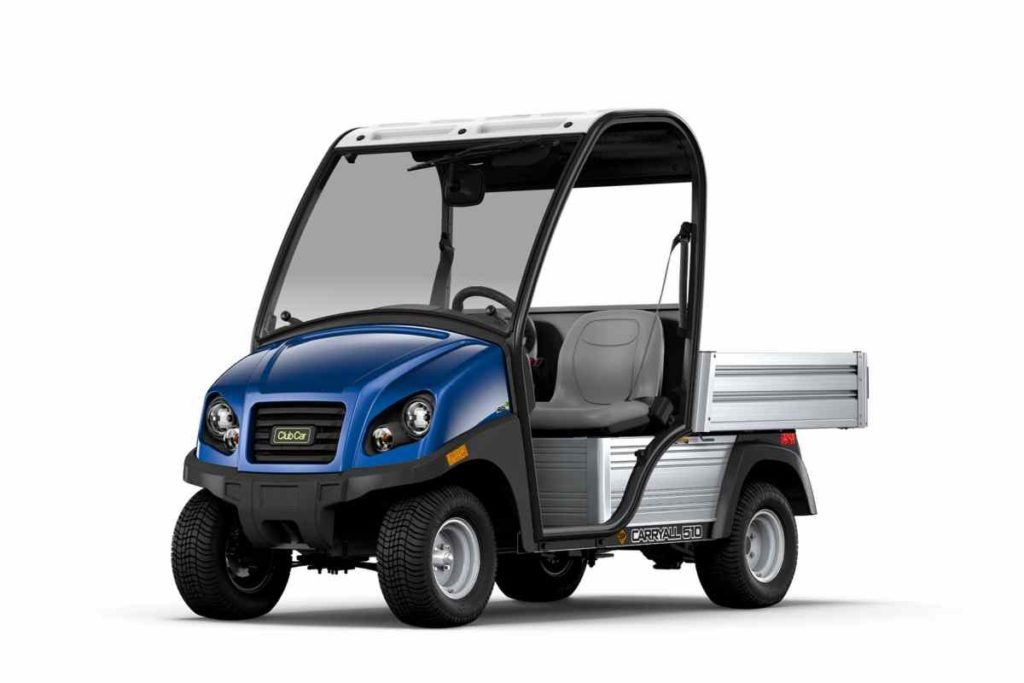

CARRYALL 510 LSV
Street-legal power, with the performance of a full-size truck.
This street-legal, low speed utility vehicle is both tough and nimble. Driven by a 48-volt battery pack and a 400-amp solid-state controller, the Carryall 510 LSV delivers a total vehicle capacity of 950 lbs. (430 kg) and still fits into narrow spaces without issue.
It also features a smart onboard charger with reel retractor that prevents common user errors and allows for opportunity charging. And its rustproof, corrosion-resistant, aircraft-grade aluminum frame knocks any notion of rust on its head.
Use it to haul equipment in the morning and run off-site errands in the afternoon – without needing to top off the long-lasting battery.
| CARRYALL 510 LSV ELECTRIC | |||
|---|---|---|---|
| Drive Motor | 48V 3-phase AC | ||
| Horsepower | 4.4 hp (3.3 kW); Peak 16 hp (11.7 kW) | ||
| Drive Unit | 12.3:1 direct-drive axle, | Batteries | One 12-volt |
| Charger | On-board DeltaQ QuiQ (1KW High Frequency) | ||
| Forward Speed | 25 mph | ||
| CARRYALL 510 LSV ELECTRIC | |||
|---|---|---|---|
| Steering | Self-adjusting rack and pinion | ||
| Front Suspension | Independent leaf spring w/dual hydraulic shocks | ||
| CARRYALL 510 LSV ELECTRIC | |||
|---|---|---|---|
| Brakes | 4-wheel hydraulic drum | ||
| Park Brake | |||
| CARRYALL 510 LSV ELECTRIC | |||
|---|---|---|---|
| Body and Finish | ArmorFlex® with automotive paint/clear coat | ||
| Tires | 205-65-10 6-Ply, DOT | ||
| Bed LxWxH | 205-65-10 6-Ply, DOT44.2 x 47.5 x 10.5 in (112.2 x 120.6 x 26.6 cm) | ||
| Wheelbase | 78.1 in (198.3 cm) | ||
| Ground Clearance | 5.6 in (14.2 cm) | ||
| Tread-Front and Rear | Front/Rear: 34.6 in (87.8 cm) /39.2 in (99.5 cm) | ||
| Vehicle LxWxH | 118 x 62.6 x 74.3 in (299.7 x 159.0 x 188.7 cm) | ||
| Frame Type | AlumiCore™ — Ladder-style aluminum box beam | ||
