Golf Cars of Arizona CARRYALL 500
CARRYALL 500
Versatile, rugged, and a popular choice for many jobs.
JACK OF ALL TRADES
One of the most versatile work utility vehicles on the market, this ride has the power to replace pickup trucks at a fraction of the cost.
With a total vehicle capacity of 1,200 lbs (544 kg), it tackles heavy work without breaking a sweat. Available with gasoline or zero-emissions electric powertrains
It features a rustproof aircraft grade aluminum frame, chassis and cargo box along with best-in-class ergonomics. From its sturdy front bumper to its flatbed cargo box with industrial van box options, the Carryall 500 is the perfect solution for your industrial and commercial jobs.
FIT-TO-TASK EQUIPMENT
We’ve listened to your feedback, and now ordering the right equipment and accessories has never been easier. With our Fit-to-Task series, you’ll get the right vehicle outfitted for your specific needs and with faster turnaround time.

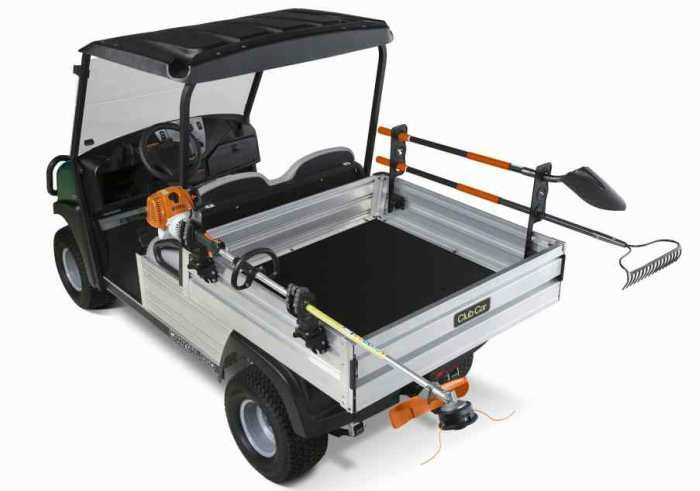

VERSATTACH
No team ever has just one job to do – it’s a series of tasks with different needs for each. Having the right tools available at all times speeds up work and reduces travel time.
Our VersAttach™ bed attachment system offers the perfect solution, providing security for tools so they don’t get damaged while traveling and making it easy to carry mutliple pieces of equipment at once wherever you need to go.
Available on the Carryall 300, 500, 550, and 700. Talk to an authorized Club Car dealer to learn more.
| ELECTIC | GOSLINE | ||
|---|---|---|---|
| Engine | 48V DC | Engine | 404 cc Subaru, Overhead Cam with EFI |
| Horsepower | 3.7 hp (2.4 kW) rated; Peak 13 hp (9.6 kW) | Horsepower | 14.0 hp (10.3 kW) rated @ 3600 RPM per SAE J1940 |
| Batteries | (6) 8-volt flooded lead acid | Batteries | 12V 500 CCA 105min Reserve |
| Charger | E.R.I.C. (650 W High Frequency) | Charger | N/A |
| Speed Range | 5-17 mph (8-27 kph) | Speed Range | 15-17 mph (24-27 kph)
|
| Fuel Tank | N/A | Fuel Tank | 5.5 gal (20.8 L) |
| ELECTIC | GOSLINE | ||
|---|---|---|---|
| Steering | Self-adjusting rack & pinion | Steering | Self-adjusting rack & pinion |
| Front Suspension | Independent leaf springs | Front Suspension | Independent leaf springs |
| ELECTIC | GAS | ||
|---|---|---|---|
| Brakes | 4-wheel Mechanical Drum | Brakes | 4-wheel Mechanical Drum |
| Park Brake | Foot Operated, Multi-lock | Park Brake | Foot Operated, Multi-lock |
| ELECTIC | GAS | ||
|---|---|---|---|
| Body and Finish | ArmorFlex with automotive paint/clearcoat | Body and Finish | ArmorFlex with automotive paint/clearcoat |
| Tires | 20 x 10-10, 6-ply | Tires | 20 x 10-10, 6-ply |
Bed LxWxH | 44.2 x 47.5 x 10.5 in (112.2 x 120.6 x 26.6 cm) | Bed LxWxH | 44.2 x 47.5 x 10.5 in (112.2 x 120.6 x 26.6 cm) |
| Wheelbase | 78.1 in (198.3 cm) | Wheelbase | 78.1 in (198.3 cm) |
| Ground Clearance | 5.6 in (14.2 cm) | Ground Clearance | 5.2 in (13.2 cm) |
Tread | Front/Rear: 36.6/39.5 in (92.9/100.3 cm) | Tread (Front/Rear) | Front/Rear: 36.6/39.5 in (92.9/100.3 cm) |
| Vehicle LxWxH | 118 x 50.3 x 47.1 in (299.7 x 127.7 x 119.6 cm) | Vehicle LxWxH | 118 x 50.3 x 47.1 in (299.7 x 127.7 x 119.6 cm) |
| Frame Type | AlumiCore™ — Ladder-style aluminum box beam | Frame Type | AlumiCore™ — Ladder-style aluminum box beam |
