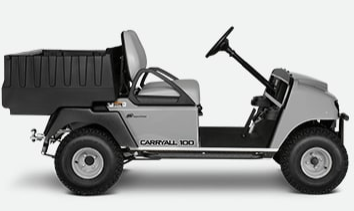

CARRYALL 100
Our most economic option packs strong punch for its size.
ENTRY-LEVEL PRICE.
FULL-SIZE PERFORMANCE.
The sturdy but affordable Carryall 100’s small profile and tight turning radius make it a great choice for security, parking and lighter duties. Available in gas or electric models with onboard chargers and reel retractors, it fits into the back of a pickup truck for easy transport.
| ELECTIC | GOSLINE | ||
|---|---|---|---|
| Engine | 48V DC | Engine | 404 cc Subaru. Overhead Cam with EFI |
| Horsepower | 3.7 hp (2.4 kW) rated; Peak 13 hp (9.6 kW) | Horsepower | 14.0 hp (10.3 kW) rated @ 3600 RPM per SAE J1940 |
| Batteries | (6) 8-volt flooded lead acid | Batteries | 12V 500 CCA 105min Reserve |
| Charger | Automatic, computer-controlled 48-volt DC, 17 amp | Charger | N/A |
| Speed | 5-17 mph (8-27 kph) | Speed | 15-17 mph (24-27 kph) |
| Fuel Tank | N/A | Fuel Tank | 5.5 gal (20.8 L) |
| ELECTIC | GOSLINE | ||
|---|---|---|---|
| Steering | Self-adjusting rack & pinion | Steering | Self-adjusting rack & pinion |
| Front Suspension | Independent leaf springs w/dual hydraulic shocks | Front Suspension | Independent leaf springs w/dual hydraulic shocks |
| ELECTIC | GOSLINE | ||
|---|---|---|---|
| Brakes | Self-adjusting rack & pinion | Brakes | Self-adjusting rack & pinion |
| Park Brake | Foot Operated, Multi-lock | Park Brake | Foot Operated, Multi-lock |
| ELECTIC | GOSLINE | ||
|---|---|---|---|
| Body and Finish | ABS with automotive paint | Body and Finish | ABS with automotive paint |
| Tires | 20 x 10-8, 4-ply rated, All-trail II | Tires | 20 x 10-8, 4-ply rated, All-trail II |
| Bed LxWxH | 27.5 x 43.5 x 11 in (65.3 x 110.5 x 27.9 cm | Bed LxWxH | 27.5 x 43.5 x 11 in (65.3 x 110.5 x 27.9 cm) |
| Wheelbase | 65 in (165.1 cm) | Wheelbase | 65 in (165.1 cm) |
| Ground Clearance | 5.5 in (14 cm) | Ground Clearance | 5.5 in (14 cm) |
| Tread (Front/Rear) | 101 x 45 x 48 34.5/38.5 in (88/98 cm) | Tread (Front/Rear) | 34.5/38.5 in (88/98 cm) |
| Vehicle LxWxH | 101 x 45 x 48 in (257 x 114.3 x 121.9 cm) | Vehicle LxWxH | 101 x 45 x 48 in (257 x 114.3 x 121.9 cm) |
| Frame Type | AlumiCore™ — Ladder-style aluminum box beam | Frame Type | AlumiCore™ — Ladder-style aluminum box beam |
