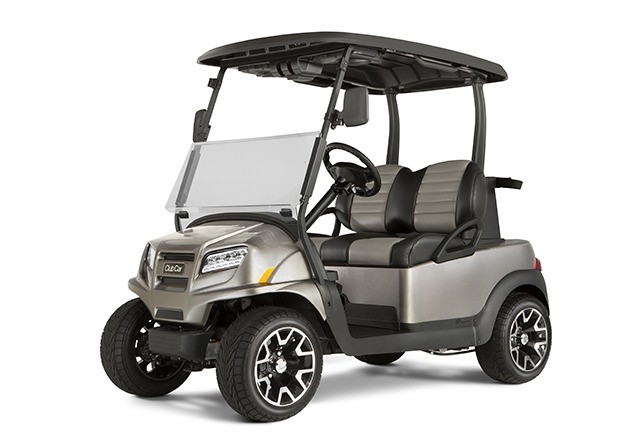

ONWARD® 2-Passenger Golf Car in Arizona
ONWARD® 2-PASSENGER
Elevate style and comfort, whether you’re on or off the course. Available in Gas or 3 Electric models. FLA(deep-cycle batteries)/DC drive system, Lithium/AC drive systems, and the new FLA/AC drive system for extended range.
TRULY PERSONAL
Onward® is the only personal transportation vehicle with extensive factory integrated custom options.
From wheels to seats, colors to accessories, design your gas or electric golf car to suit your style and stand out while you’re having fun.
| ELECTRIC FLA (Deep cycle) | GAS | |
|---|---|---|
| Engine | D/C MOTOR | 429CC Kohler OHV w/ EFI |
| Horsepower | 3.3 hp (2.4 kW) rated; Peak 13 hp (9.6 kW) | 14.0 hp (10.3 kW) rated @ 3600 RPM |
| Batteries | (6) 8-volt Deep cycle FLA | One 12-volt |
| Charger | Eric solid state | N/A |
| Max. Speed | 19 mph (30 kph) | 19 mph (30 kph) |
| Fuel Capacity | N/A | 5.7 gal |
| ELECTRIC LITHIUM ION HP | ELECTRIC FLA HP | |
|---|---|---|
| MOTOR | A/C | A/C |
| Horsepower | 4.7 HP (3.5 kW) | 4.7 HP (3.5kW) |
| Batteries | 58V LITHIUM | 6-8 volt Deep cycle FLA |
| Charger | Eric solid state | N/A |
| Max. Speed | 19 mph (30 kph) | 19 mph (30 kph) |
| Fuel Capacity | N/A | N/A |
| ELECTIC | GAS | ||
|---|---|---|---|
| Steering | SportDrive™ — Self-compensating double reduction helical rack & pinion | Steering | SportDrive™ — Self-compensating double reduction helical rack & pinion |
| Front Suspension | Independent A-arms with Hydraulic shocks | Front Suspension | Independent A-arms with Hydraulic shocks |
| Rear Suspension | Patent pending w/ Track Bar and Automotive Grade Jounce Bumpers | Rear Suspension | Patent pending w/ Track Bar and Automotive Grade Jounce Bumpers |
| ELECTIC | GOSLINE | ||
|---|---|---|---|
| Brakes | Self-adjusting, rear wheel mechanical drum | Park Brake | Foot actuated, 3-position |
| Brakes | Self-adjusting, rear wheel mechanical drum | Park Brake | Foot actuated, 3-position |
| Body and Finish | Front: Painted TPO; Rear: Painted Surlyn | Body and Finish | Front: Painted TPO; Rear: Painted Surlyn |
|---|---|---|---|
| Tires | 205 x 55 – 10 Tubeless | Tires | 18 x 8.50 – 8 Tubeless |
| LxWxH | 92 x 48 3/4 x 71 inches | LxWxH | 92 x 48 3/4 x 71 inches |
| Wheelbase | 65 1/2 inches | Wheelbase | 65 1/2 inches |
| Ground Clearance | 4 1/2 inches | Ground Clearance | 4 1/2 inches |
| Tread-Front and Rear | Front/Rear: 36/40 inches | Tread-Front and Rear | Front/Rear: 36/40 inches |
| Total Vehicle Weight | 975 lb | Total Vehicle Weight | 975 lb |
| Frame Type | AlumiCore™ — Ladder-style aluminum box beam | Frame Type | AlumiCore™ — Ladder-style aluminum box beam |
