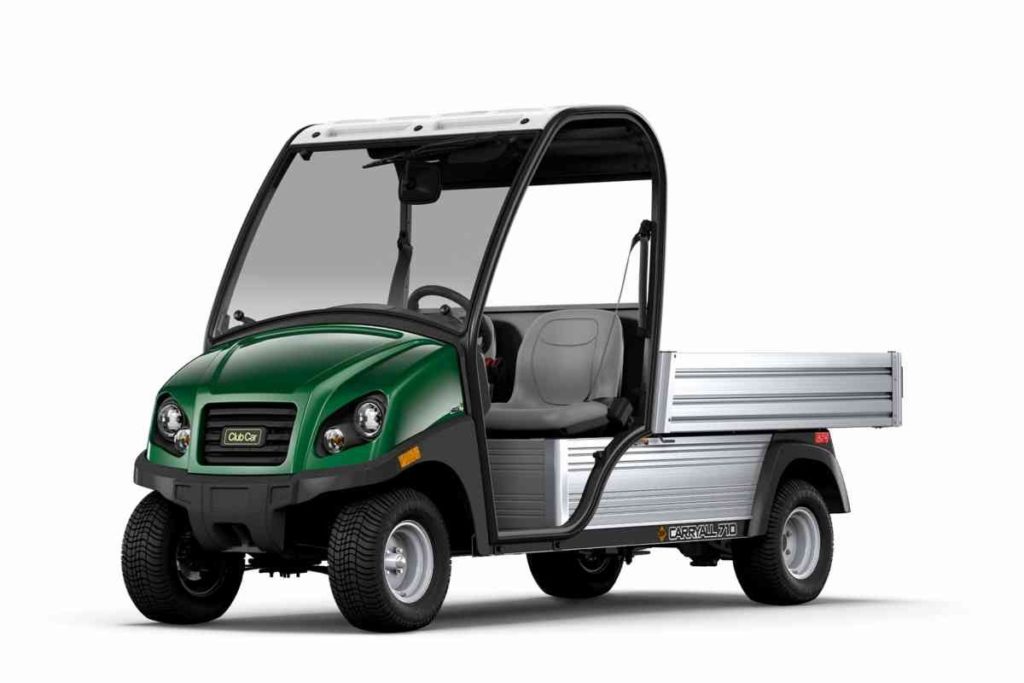

CARRYALL 710 LSV
Powerful and perfectly sized, giving you the benefits of a pickup without the price.
WORK. ANYWHERE.
With a bed that’s nearly six-feet long (68 cm) and a 1,050 lbs. (476 kg) total vehicle capacity, the Carryall 710 LSV delivers pickup truck performance without the sticker shock. And it does it all while reducing your carbon footprint.
It’s equipped with a 48-volt electric powertrain, a 400-amp solid-state controller and a smart onboard charger with reel retractor that prevents common user errors and allows for opportunity charging.
With a top speed of 25 mph and rustproof, corrosion-resistant, aircraft-grade aluminum frame, you can put it to work however you need and know it’ll stand up to the test again and again.
| CA710 LSV | |||
|---|---|---|---|
| Drive Motor | 48V 3-phase AC | ||
| orsepower | 4.4 hp (3.3 kW) rated | ||
| Electrical System | 48 volt DC | ||
| Charger | On-board DeltaQ QuiQ (1KW High Frequency) |
||
| Forward Speed |
25 mph
|
||
| CA710 LSV | |||
|---|---|---|---|
| Steering | Self-compensating rack & pinion | ||
| Front Suspension | Independent leaf spring w/dual hydraulic shocks | ||
| Rear Suspension | Leaf springs with dual hydraulic shocks | ||
| CA710 LSV | |||
|---|---|---|---|
| Brakes | 4-wheel hydraulic drum | ||
| Park Brake | |||
| CA710 LSV | |||
|---|---|---|---|
| Body and Finish | Front: ArmorFlex with automotive paint; Rear: Rust-proof aluminum | ||
| Tires | 205-65-10 6-Ply, DOT | ||
| LxWxH | 132 x 62.6 x 74.3 inches (349.3 x 127.7 x 188.7 cm) | ||
| Wheelbase |
99.1 inches/251.7 cm
|
||
| Ground Clearance | 5.6 inches/14.2 cm | ||
| Total Vehicle Weight | 1765 lb | ||
| Total Vehicle Capacity |
1050 lb
|
||
